Rub Resistant Screen Protect Film

We have two type of protective film as below

---Hard Coating, Rub-Resistant Protective Film---

---Self Heal, High Tensile Strength Protective Film---




---Hard Coating, Rub-Resistant Protective Film---

Hard Coating, Rub-Resistant Protective Film can apply on Cell Phone Screen Protectors, NoteBook Screen Protectors, Smart Watch Screen Protectors or any protective film need to anti rub for a lot of times

The Roll of Rub-Resistant Protective Film can resist the copper brush about 2000 times and the hardness is above 3H. It still have the water contact angle above 105 degree.

hard coating structure

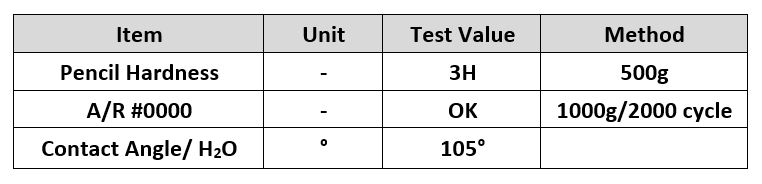

hard coating TDS COA

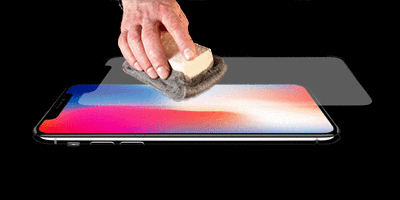

1.Rub-Resistant Test

hard coating test 1

hard coating test 2

Rub-Resistant Test:Steel brush #0000、weight:1kg(1000g) can pass 2000 times rub without scratch.

We used machine and copper brush to simulate people use touch panel by their fingers. Because the coating layer disappear the protective film was scratched. Now Force-One Applied Materials CO., LTD. using the new technology to make the coating layer from 20 times scratch improve to 2000 times scratch. It can make end-user have a good protection for their touch panel. Compare with protective glass, it was cracked and soft, so it can give screen or touch panel more protection. So end-users like "Rub-Resistant Protective Film" more than protective glass.

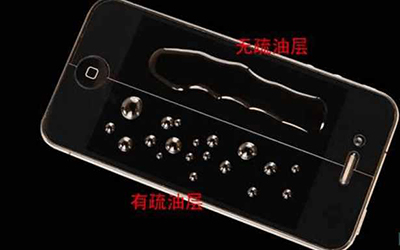

2.Hydrophobic Layer

hard coating hydrophobic

Hard Coating, Rub-Resistant Protective Film still provides high water contact angle (hydrophobic function) in addition to scratch resistance. It have super-hydrophobic and can automatic cleaning by hydrophobicity, and removes the surface of water and grease. The smooth touch of the new mobile phone screen comes from the hydrophobic & oleophobic layer. Without the hydrophobic oleophobic layer, there will be very difficult to move on touch panel, and it is easy to leave fingerprint stains and is not easy to wipe.
